Commissioning Software

Our commissioning software offers the latest state of the art user interface and all the tools needed to start-up and commission your VFD, Soft Starter, DC Drive or Servo product.

Below some example screenshots of our commissioning, start-up and diagnostics software. All our software is fully customized to work with your product and includes all parameters, monitor signals, faults, alarms, etc..

Customized software available for Windows, OS X, iOS and Android.

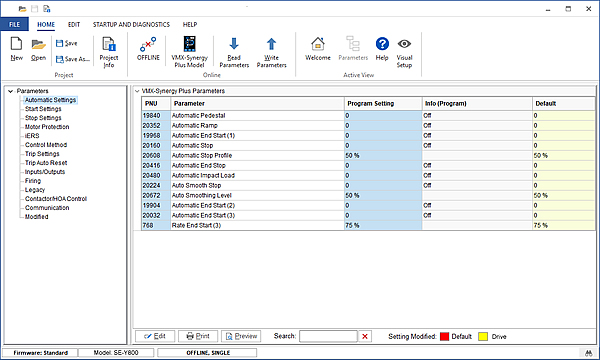

Example: Parameter Management

Parameter management allows the user to view, modify product parameters online as well as offline. Features include modified parameter overview, compare, search and export function. The parameter list can be e-mailed or exported to any of the popular file formats (PDF, Excel, Word, etc...).

When online the user can read, write all or single parameters from or to the product.

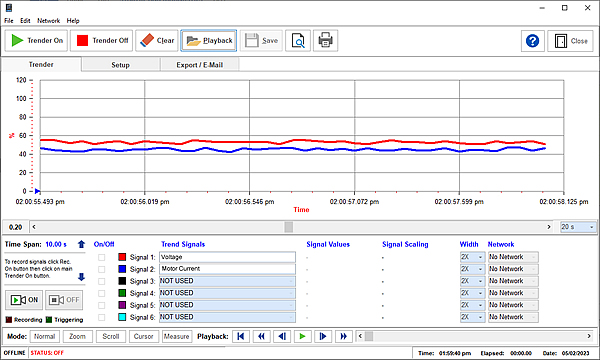

Example: Trend Recorder

The trender offers the user the ability to select one or more available monitor signals (analog or digital) and show them in real-time, communicating via a serial, Ethernet, Bluetooth or USB connection. Each signal is automatically scaled based on the engineering units. Scaling can be customized for each signal. With the build-on record and playback function each trend can be stored and played back at a later time. In addition the trender supports triggering, zoom, panning, cursor measurement.

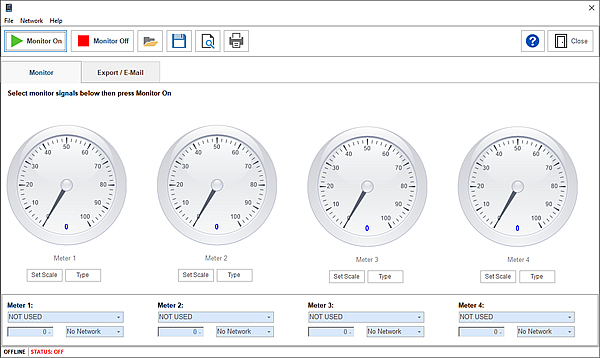

Example: Monitor Panel

The monitor function offer the user the ability to select one or more available monitor signals and show them on gauges (analog or digital) and show them in real-time, communicating via a serial, Ethernet, Bluetooth or USB connection. Each signal is automatically scaled based on the engineering units. Scaling can be customized for each signal.

Features

  • Create individual Project

    Open and Save Projects

    Add, View and Modify Project Information

  • Edit, View, Modify Parameters

    Compare Parameter Sets

    Generate Parameter Report

    Export Parameter Report (PDF, WORD, Excel, etc..)

  • Protocols:

    Modbus RTU, Modbus TCP, Metasys, P1, BACNet

    Connect via:

    Serial (RS232 and RS485 Multi-drop)

    Ethernet (Wired / Wireless)

    USB

    Bluetooth

  • Multi-channel with trigger function

    Analog and digital signal support

    Record and Playback Function

    Export Trend Report (PDF, WORD, Excel, etc..)

    Export Trend Data (CSV, Excel)

    E-mail Trend Report (PDF)

  • Multi Gauge

    Selection from multiple indicators

    Export Monitor Report (PDF, WORD, Excel, etc..)

    E-mail Monitor Report (PDF)

  • Live Product Status

    Fault History with Trace Function

    Export Status Report (PDF, WORD, Excel, etc..)

    E-mail Status Report (PDF)

  • Basic Product Setup Wizard

    Advanced Product Wizard

    Application Specific Product Wizard

  • Generate Full Parameter Report

    Generate Modified Parameter Report

    Generate Parameter Search Report

    E-mail or Export any Report (PDF)

  • Control Product (RUN, STOP, FWD/REV, RESET)

    Set Reference with Engineering Unit Support)

    Fault and Alarm Indicators

    Actual Graphical Representation of Keypad

  • Integrated Help File

    Integrated Product Documentation
