Energy Estimator for Fan and Pump Systems

Software estimates energy savings achieved when using a variable frequency drive instead of conventional control methods for fan and pumping applications. The results can be viewed in graphical format and text format and the software has built-in functions to generate an energy estimation report especially designed for consultants.

Estimate energy savings of a single fan or pump system or a project containing multiple fan and
pump systems of equal or different size. The software generates multi-page project report
including a summary page based on the estimated savings of the total project.

Customized software available for Windows, OS X, iOS and Android.

Example: VFD System

Specify Application Type, Motor Data, VFD Cost, Installation and Operation.

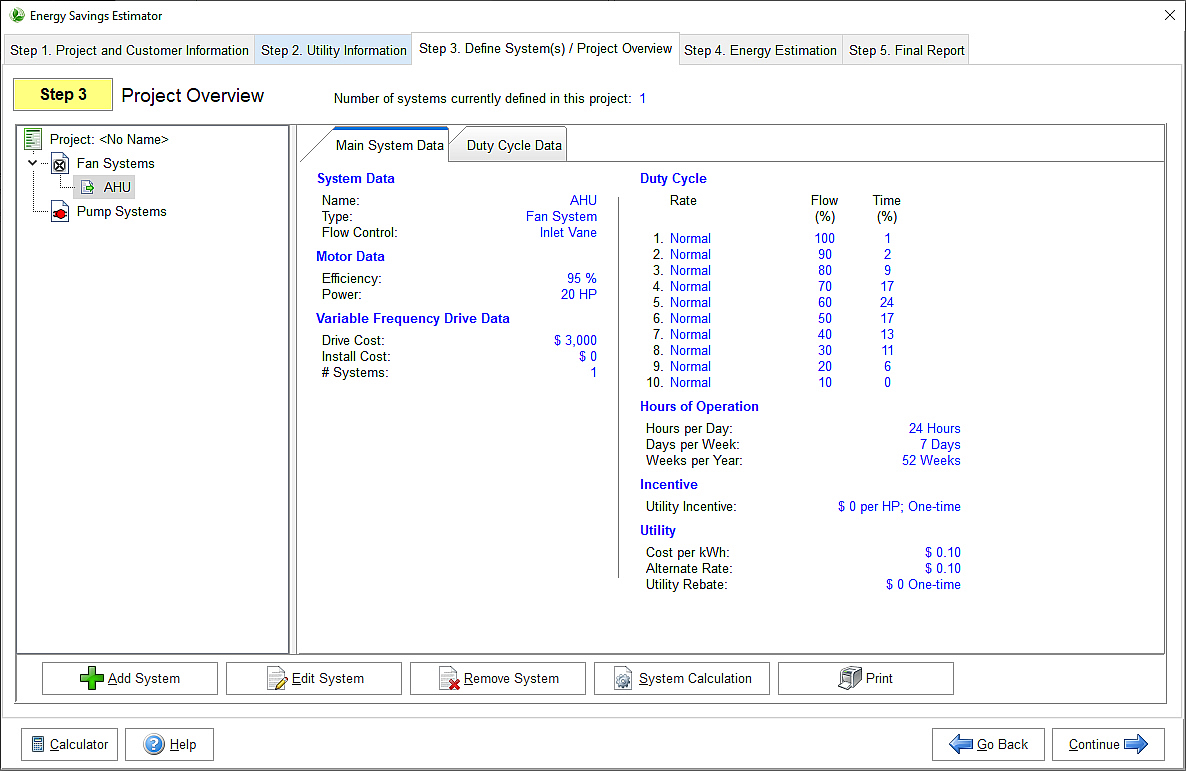

Example: Project Management

Project Management and Overview of VFD Systems

Example: Energy Estimation Overview

Energy Estimation of Total Project including Carbon Footprint Estimation.

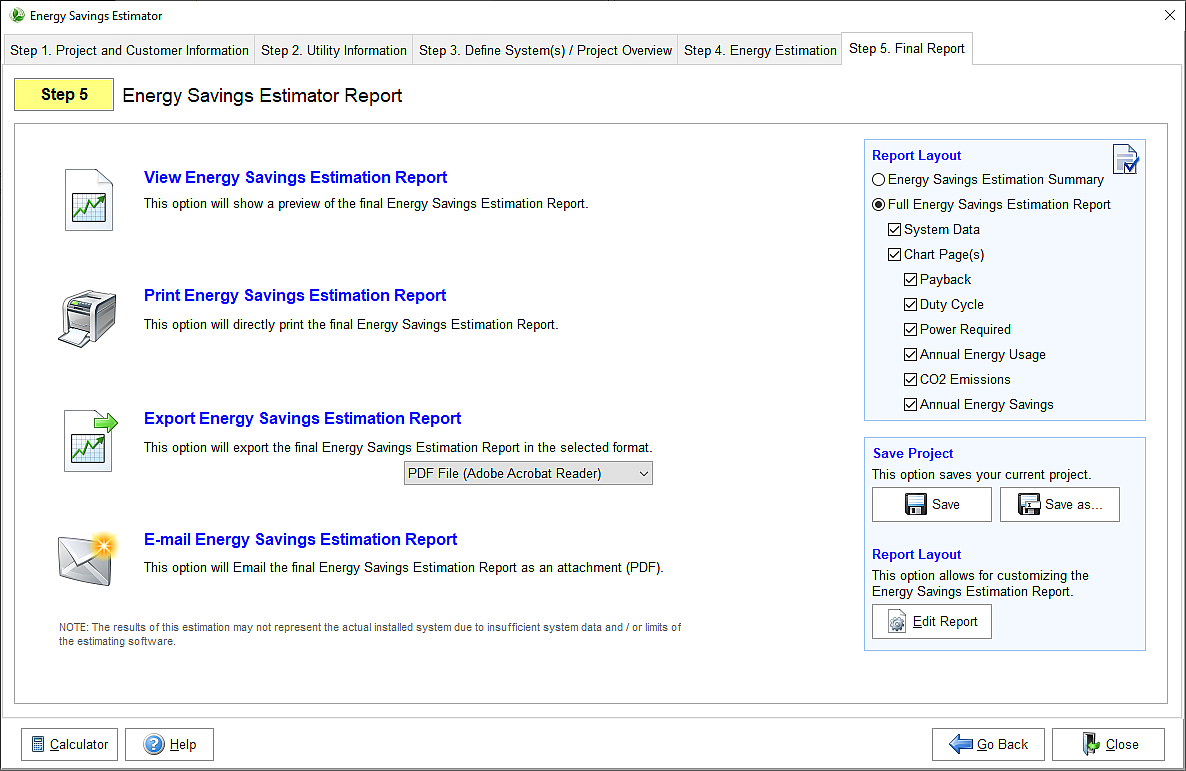

Example: Energy Estimation Report/span>

Preview, Print, Export or E-mail Energy Estimation Report.

Demo Software

File Size: 14.3 MB
File Format: Windows ZIP File
Compatible with Windows XP or higher
Installation: Unzip File to Temporary Folder and run setup.exe

Features

  • Create Individual Projects

    Open and Save Projects

    Add, View and Modify Project Information

    5 Easy Steps to complete Estimation

    Single VFD or Multiple VFDs under one Project

    Project Energy Estimation

    Project Carbon Foot Print Estimation

    Project Payback Estimation

    Indvidual VFD Energy Estimation

    Currency selection ($, Euro, Pound or Custom)

  • Edit, View, Modify VFD Systems

    Name Indvidual VFD Systems

    Indvidual Energy Estimation

    Indvidual Carbon Foot Print Estimation

    Systems up to 5000 HP / kW

    Specify Hours of Operation

    Specify VFD and Installation Cost

  • Utility Rate Function

    Alternate Rate (Night Rate) Function

    Incentive function

    Total System Rebate Function

  • Compare VFD Control to:

    Outlet Damper Control (Fan Control)

    Inlet Vane Control (Fan Control)

    Throtteling Valve Control (Pump Control)

    Across the Line Control (Fan/Pump Control)

    Customizable Efficiencies

  • Preview Estimation Report

    Print Estimation Report

    Customize Estimation Report (Logo, Company)

    Export Estimation Report (PDF, WORD, Excel, etc..)

    E-mail Estimation Report (PDF)

  • Duty Cycle Graph

    Payback Graph

    Power Required Graph

    Energy Usage Graph

    Energy Savings Graph

    CO2 Emmisions Graph

    Graphs selectable on Energy Estimation Report

  • Metric / English Units Selection

  • Integrated Help File

    Integrated Product Documentation
